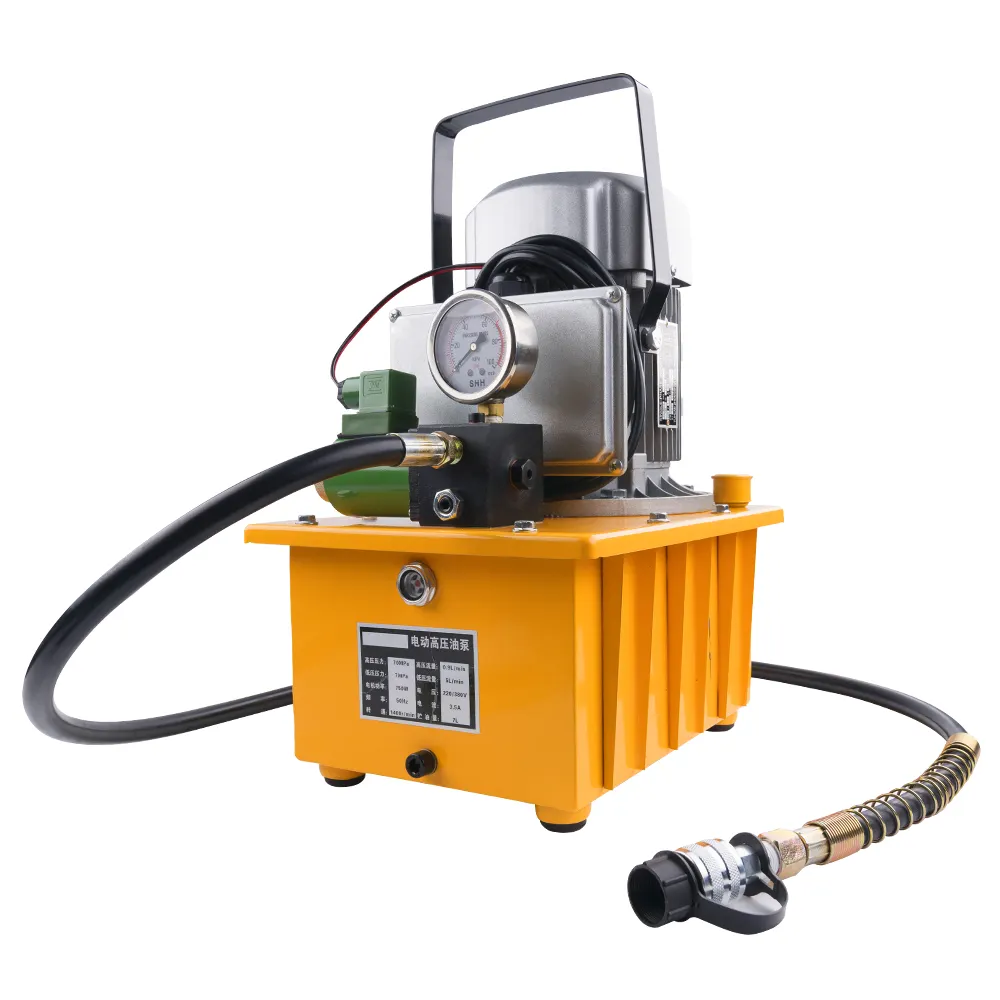

HHB-700A 700 bar high-pressure hydraulic pump

Voltage 220V/380V
Motor power 0.75KW
High pressure 70mpa
Low pressure 7mpa
High pressure flow rate 1L/min (above 7mpa)
Low pressure flow rate 5L/min (below 7mpa)
Motor speed 1400r/min
Net weight around 25kg
Packaging method: wooden crate
Gross weight 30kg – including packaging
Oil storage capacity 7L

Product features:
Anti vibration pressure gauge effectively avoids the impact of vibration, and the instrument indication is stable and clear
When working, it is necessary to loosen the oil filling port to avoid causing the plunger pump to be unable to suck up oil
Visual fuel window: When refueling, it must exceed half of the fuel window
All copper motor, powerful and high-power
Suitable for split hydraulic pliers, punching, bending, cutting tools, jacks and other split hydraulic products
The pressure has been set to 70mpa at the factory and can be adjusted according to customer requirements, with an adjustable range of 20-70mpa
The high-pressure oil pipe can be extended arbitrarily, and comes standard with a 2-meter long pipe at the factory
Electric hydraulic pump is a high and low pressure plunger pump
